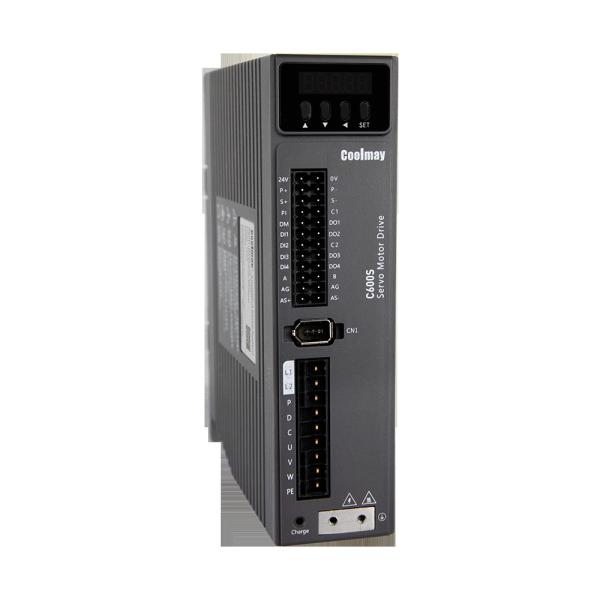

0.75KW Single Phase 220V AC Servo Motor Drive RS485 Communication Mode

Name: 075KW Single Phase 220V AC Servo Motor Drive RS485 Communication Mode
Brand: Coolmay
Price: 1 USD

China 0.75KW Single Phase 220V AC Servo Motor Drive RS485 Communication Mode factory

Brand Name : Coolmay

Model Number : C600S-75

Place of Origin : Shenzhen

MOQ : 1 unit

Price : Negotiable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 100,000 set per month

Delivery Time : 3-7 work days

Packaging Details : Packed with standard carton box

Type : Simple type

Outputpower : 0.75KW~1KW

Main circuit Input power supply : Single phaseAC220V-15%~+10% 50/60Hz

Energyconsumptionbraking : Support built-in and external

Applicableload : Less than 3 times of motor inertia

Communication mode : mode RS485

Contact Now

0.75KW Single Phase 220V AC Servo Motor Drive RS485 Communication Mode

Introduction to product features

Powerful internal motion control function, which can complete control modes such as position,

speed, torque and homing, and support i/o control and standard Modbus RTU The protocol can

replace PLC or pulse module in some occasions to reduce the application cost.

● Easy connection with touch screen (HMI)

● Rs485 motion control with PLC

● Direct control via switch

● Controlled by i/o module of PLC

Parameter:

0.75KW Single Phase 220V AC Servo Motor Drive RS485 Communication Mode

Wiring diagram of position control mode

1. The internal +24v power supply voltage range is 20v~28v, and the maximum working current is 100mA.

If an external 24V power supply is used, please connect the external power supply +24v to pin 16 (COM),

and the external power supply 0V to pin 43 (e0v).

2. The user of do output power supply needs to provide it by himself. The recommended

working powersupply voltage is DC24V, and the conduction voltage drop of do port is about 2.4V.

Please pay attention to it in application.The maximum allowable voltage of do port is DC30V

and the maximum allowable current is 50mA.
